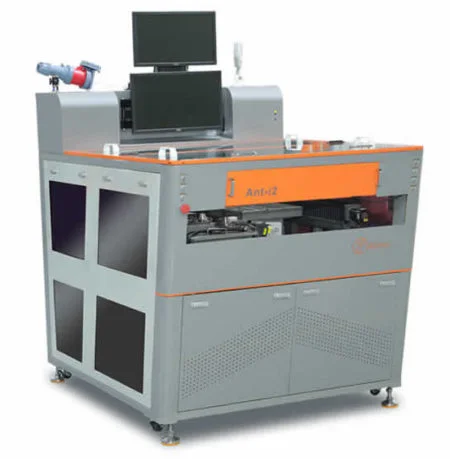

Offline Selective Soldering Machine – Ant-i2
- Category: Offline Selective Soldering Machines
- Manufacturer: SASinno
A Next-Generation Selective Wave Soldering Machine
Designed for high-volume offline production for small PCBs, good flexibility for big boards and provides a competitive machine cost
About the Offline Selective Soldering Machine – Ant-i2
PCB is moved by X/Y table with servo motor, Solder pot is moved in Z with servo motor, drop jet flux is moved in Z with air cylinder. Standard equip Drop jet fluxer, bottom preheating, selective solder pot, inline N2 heater, auto wave height calibration, live-on camera, Windows 10 English software.
- Two drop jet fluxer
- Bottom IR preheating, optional with top preheating zone
- One solder pot with two individual wave tunnels
- PCB moves in X/Y while solder pot/fluxer moves in Z
- Single soldering nozzle handles max 350 x 215 mm
- Two nozzle could soldering max 350mm x 215mm parallel
- Windows 10 operating system
- Three-axis full servo drive with ball screw movement
- Standard equipped with wave height calibration
- Real-time soldering process monitor
Specifications
| Item | Ant-i2 |
| General | |
|---|---|
| Operating power/Max power | 7KW/13KW |
| PCB dimension | 50x50---350x450mm (when use only one solder nozzle) |
| 50x50---350x215mm (when use two wave nozzles parallely) | |
| Machine dimension | W1260mm x D1640mm X H1895mm |
| Net weight | 550KG |
| Power supply | 3PH 380V 50HZ MAX 34A Equip 40A contactor in factory |
| Air supply | 3-5 bars |
| Exhausting required | 200M3/h |
| Controlling System | |
| Industrial PC | Yes |
| Typical Program Time | 10 Minutes |
| Program method | Draw path in scanned picture of board |
| Controlling system | PC |
| PCB Robotic Platform | |
| Axes of Motion | X, Y, Z |
| Motion Control | Servo motors for X,Y,Z |
| Position Accuracy | + / - 0.05mm |
| Flux Management | |
| Flux Nozzle type | drop jet nozzle made in Germany |
| Flux nozzle number | 2 sets |
| Flux Capacity | 1L |
| Flux Tank | Constant pressure tank |
| Preheat | |
| IR heater | 5kw |
| Solder Management | |
| Standard Solder Stations | 1 |
| Solder Pot Capacity | 35 kgs |
| Solder Temperature Control | PID |
| Heat-Up Time | About 50mins |
| Solder Pot heater | 380°C |
| Solder Pot heater | 2.4kw |
| Solder level alarm | standard |
| Wave tunnel | two individually |
| Wave control | servo motor, mechanical pump |
| Solder Nozzles | |
| Mini Wave Nozzles | Dia 4, 6,8,10,12mm |
| Customized nozzle | Available |
| Nozzle Material | Proprietary Alloy |
| (N2) Inertion Management | |
| N2 heater | Standard Equipped |
| N2 Temp PID Control Range | 0 - 350℃ |
| N2 Consumption per Nozzle | 1.5m3/H Total need: 3m3/H (Recommend to connect with Selmate-4 N2 generator) |
| Required N2 Purity | >99.99% |
