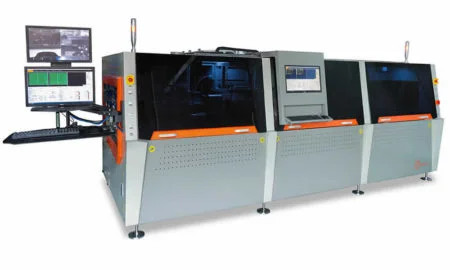

Inline Selective Soldering Machine – MAS-i22/1
- Category: Mass Production Selective Soldering Machines
- Manufacturer: SASinno

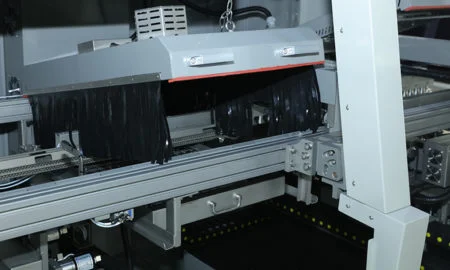

- Dual rail conveyor (Max W508 x L508mm)
- 4 individual solder pots
- Can solder for 4 boards at the same time
- Expandable for 6 pots
- Heavy load boards ! Can meet Max 20kg load for each product
- High flexibility – use one or both lanes of the conveyor
- Max board can size W500mm x L500mm
- Windows 10 system
- Real-time soldering process monitor
About the Inline Selective Soldering Machine – MAS-i22/1
Specifications
| Item | MAS-i22/1 Selective Soldering Machine |
| General | |
|---|---|
| Operating power/Max power | 10KW/32KW |
| Machine dimension | 4900(L)*1750(W)*1720(H) |
| Net weight | 2300KG |
| Power supply | 3PH 380V 50HZ |
| Air supply | 3-5 bars |
| Exhausting required | 1300M3/h |
| PC | Yes |
| Typical Program Time | 10 Minutes |
| Conveyor section | |
| Conveyor lane | Single Lane |
| MAX PCB | W508xL508mm |
| PCB top clearance | 120mm |
| PCB bottom clearance | 60mm |
| Max PCB weight | 20kgs |
| Selective fluxing table x 1 sets | |
| Flux Nozzle Type | drop jet fluxer made in Germany |
| Flux Nozzle Quantity | Standard equip 1 set |
| Flux Tank Capacity | 1L |
| Flux Tank Quantity | 1pcs |
| Flux Nozzle Distance | width adjustable by software |
| Axes of Motion | X, Y Servo motor |
| Position Accuracy | +/- 0.05mm |
| Preheat section x 2 sets | |
| Preheating method | Top hot air, bottom IR |
| Temperature range | 25--250c degree |

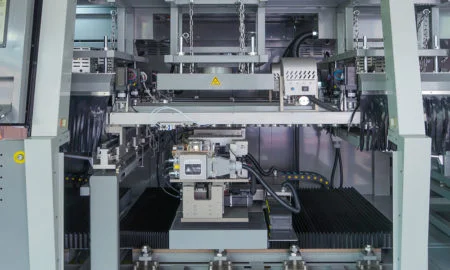

| Selective soldering table x 2 sets | |
| Solder pot type | Standard equipped mechanical pump |
| Solder pot quantity | 1pc/set |
| Solder Pot Capacity | 15kgs/pot |
| Solder level alarm | standard equipped |
| Mini Wave Nozzles | Dia 4,6,8,10,12MM |
| Customized nozzle | Available |
| Motion Control | All servo control with ball screw |
| Position Accuracy | +/- 0.05mm |
| Top preheating | Standard equipped with IR top preheating |
| (N2) Inertion Management | |
| N2 Consumption per Nozzle | 1.5m3/H, total 3m3/H (recommend to use SELMATE-4) |
| Required N2 Purity | >99.99% |
