Ultrasonic Full Coating System – FlexiCoat OP3
- Categories: Ultrasonic Coating Systems for Protective Films for Dicing, Photoresist & Polyimide Films Coating Systems for Photolithography
- Manufacturer: Sonotek

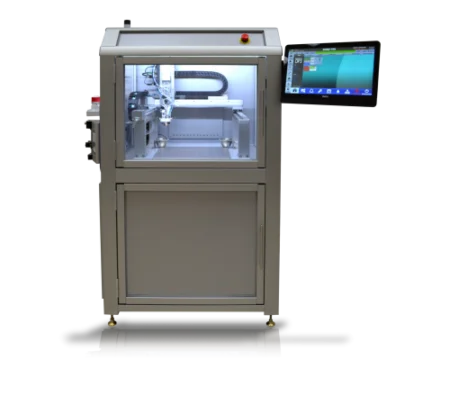

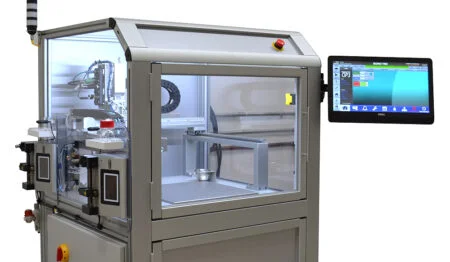

A standalone programmable three-axis robot ultrasonic full coating solution. This system employs robust ball-screw slides driven by brushless DC servo motors. Spray pattern widths can be easily shaped depending on which nozzle is used. Custom Windows-based software makes it easy to program and store a variety of spray patterns for automated processes.
About the Ultrasonic Full Coating System – FlexiCoat OP3
Basic Specifications
| Enclosure Dimensions: |
| Range of Motion*: 420 mm x 490 mm x 85 mm (16.5” x 19.2” x 3.3”) *Note: Work area may be reduced depending upon system configuration |
| Control: Windows-based programming software and on-screen teach device |
| Power Requirements: 100-240 VAC, 50/60 Hz, 4.5A max base system, 17A max with standard heat plate |
| Air: 551.6 kPa (80 PSI) dry unlubricated air |
| Motors: Brushless DC servo |
| Certification: CE |
| Ultrasonic Nozzle Designs: AccuMist, Impact, Vortex, MicroMist, or Propel |
Options:
| Common Options: Wire/rod coater, Ultrastatic ESC, glovebox enclosure with or without filtration, standard floor standing enclosure. |

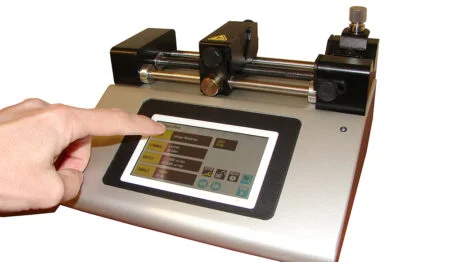

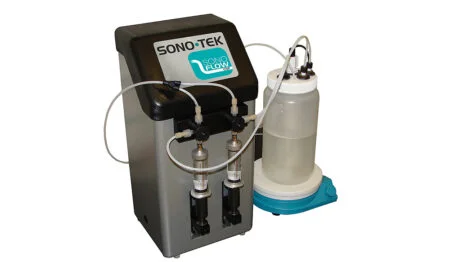

| Liquid Delivery: Common Liquid Delivery: Syringe pump (standard, Sonic or stirring), MicroFlow, SonoFlow Fusion Heat and/or Vacuum Plate: 150 degrees C heat and or vac Head configuration: Up to two heads (Ultrasonic or Vector) |
| *Additional custom options may be available depending upon application requirements |
