Mid-To-High Volume XYZ Motion Programmable Ultrasonic Coating System
- Categories: Ultrasonic Coating Systems for Protective Films for Dicing, Photoresist & Polyimide Films Coating Systems for Photolithography, Protective Coatings for Package Level EMI Shielding, Ultrasonic Spray Systems for Flip Chip Fluxing
- Manufacturer: Sonotek

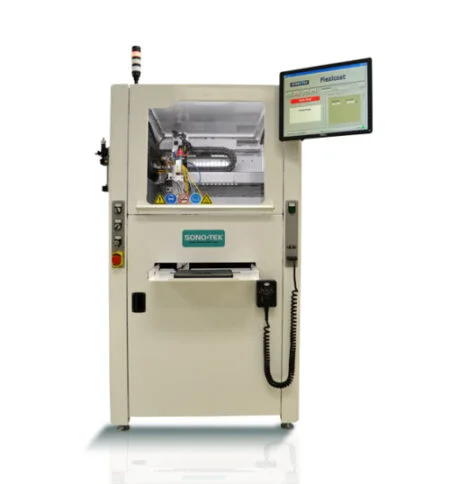

Flexicoat is a fully automated, programmable standalone system with coordinated XYZ motion control using Windows-based software and user-friendly teach pendant with trackball. Versatile mid to high-volume or pilot scale production thin film coatings. Can be configured with standard SMEMA conveyor for inline coating solutions.
About the Mid-To-High Volume XYZ Motion Programmable Ultrasonic Coating System
Basic Specifications
| Dimensions: 869 mm W x 1952 mm H x 1137 mm D (34” W x 76.9” H x 44.8” D) |
| Work Area*: 500 x 500 x 100 mm (19.69" x 19.69" x 3.94") Larger configurations available up to 1.4×1.4 m *Note: Work area may be reduced depending upon system configuration |
| Control: Windows-based (PC included) |
| Power Requirements: 120V, 220V +/- 10%, 50-60 Hz |
| Air: 551.6 kPa (80 PSI) dry unlubricated air |
| Motors: Servo |
| Certification: CE |

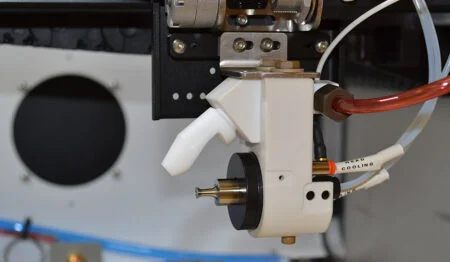

| Ultrasonic Nozzle Designs: AccuMist, Impact, Vortex, MicroMist, or Propel |
Options:

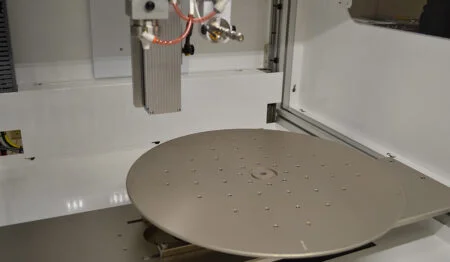

| Heat and/or Vacuum Plate: 150, 250C heat/vac or 500C heat |
| Head configuration: up to 3 heads (Ultrasonic or Vector) |

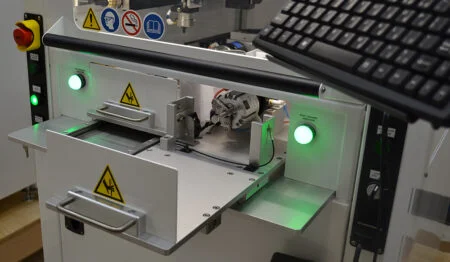

| Common Options: SMEMA conveyor, wire/rod coater, Ultrastatic ESC, Nozzle rotate and/or tilt, 1 or 2 drawer load system, LEL Sensors, cleanroom upgrade, aggressive material upgrade, Auto substrate flipping, IR heat |

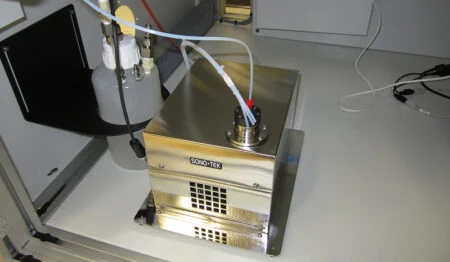

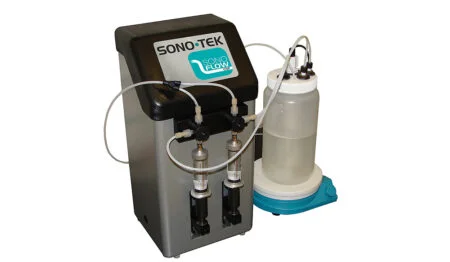

| Liquid Delivery: Common Liquid Delivery: Syringe pump (standard, Sonic or stirring), gantry mounted syringe pump, MicroFlow, SonoFlow Fusion, HyperFlow catalyst pump, gear pump |
| : *Additional custom options may be available depending upon application requirements |
