Tall Dry Cabinet – 702 Series
- Category: MSD Storage Cabinets
- Manufacturer: XDRY
The 702 dry cabinet series are tall dry cabinets providing high density storage ability.
- Set point from 2-50% RH ( +/-2%) maintained indefinitely
- Equipped with Internal sensor to control desiccant refreshing & recycling
- Energy Saving design
- Desiccant longevity exceeding 10 years
- Ergonomic Features
Standing at almost 2 meters tall, designed with 2 doors, configured standard with 5 shelves and industrial grade castors, the 702 Series provides a stable environment as low as 2% RH when equipped with a single X-133 dryer and can be upgraded to accommodate a second dryer, delivering an ultra-low 1% RH. Adding additional shelves makes this an excellent high density, easy to relocate dry storage solution.
About the Tall Dry Cabinet – 702 Series
The 702 series dry cabinet is a tall yet compact high efficiency desiccant drying cabinet that provides high density storage abilities – 700L3 capacity. This tall dry cabinet storage system is suitable for many applications including those in electronics, laboratory, aerospace and any other application requiring low controllable humidity storage. This tall dry cabinet storage system is designed to displace moisture from multiple substrates, materials and mediums, in turn rapidly returning the RH level automatically to the users desired set point on the LED control.
As in all of our dry cabinet enclosures the 702 series contains auto desiccation technology to maintain an infinite range of set points from 2% to up to 50 % RH. The internal sensor automatically controls the refreshing and recycling of the synthetic desiccant. The synthetic regenerating dry box desiccant has a lifespan of up to 10 years creating a maintenance-free system with the operating cost of just pennies a day.
Standing at almost 2 meters tall, designed with 2 doors, configured standard with 5 shelves and industrial grade casters this tall dry cabinet provides a stable environment as low as 2% RH when equipped with a single X-133 dryer and can be upgraded to accommodate a 2nd dryer delivering an ultra low 1% RH. Adding additional shelves makes this an excellent high density & easily relocated dry cabinet storage solution.
- X133 dryer system unit is self generating, auto-desiccated and maintenance free Closed loop programmable LED touch pad, which maintains RH% levels from 2 to 50% in .1% increments. RH setting lockout on LED display insures no unauthorized changes to RH% set point.
- Anti-corrosive & ESD safe coating on all surfaces, compliance with IEC61340-5-5
- Stainless steel shelves adjustable on 3″ intervals
- ESD wrist strap connection
- Secure lock and key mechanism
- Audible RH% Alarm alerts if RH% level is outside of set point
Specifications:
- 702 Series – RH Range 2% – 50% RH
- Available configured as AC110V, 50/60Hz OR AC220V, 50/60 Hz
- Electrical Consumption 63W Avg — 700W Max
- Capacity 700L3
- 5 Stainless Steel Shelves Included

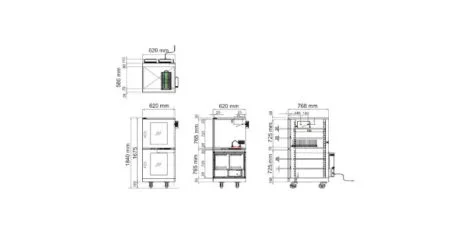

- External Dimensions 620 mm x 1840 x 780
- Internal Dimensions 610 mm x 1560 x 730
- 702 Series Weight 110 Kg
Options:
- Xtra-Heat
- RH/Cº data recorder
- HEPA filtration
- Alarm light tower
- Casters anchoring legs
- Additional dryer
- Sliding rail rack
- Custom engineering
- Nitrogen purge system
- Stainless steel construction
