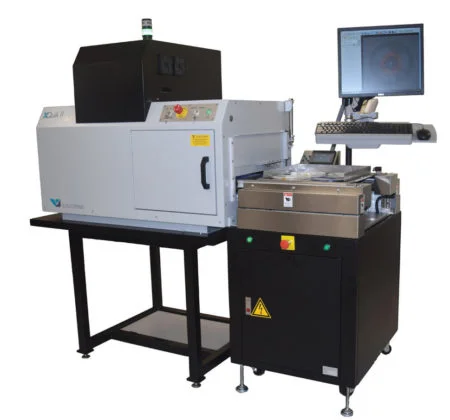

SMD X-Ray Component Counter – XQuik II Plus Autoload
- Categories: X-Ray SMD Component Counters, Component Counters
- Manufacturer: VJ Electronix
Increased Throughput In High Volume Component Counting
- Scan Speed: < 30 Seconds
- Maximum Reel Size: 15″
- Option for Automation
About the SMD X-Ray Component Counter – XQuik II Plus Autoload
Integrated bilateral conveyors allow loading of four small reels or one large reel while a scan is being performed.
VXQuik II Auto Load provides automatic load and unload of reels. The operator may scan barcodes, apply labels and transfer reels while scanning and counting of the next reels take place- providing a significant throughput increase.
The XQuik II Auto Load processes either one 13 – 15 inch reel or four 7 inch reels at one time. Automatic counting algorithms mean no programming is required.
XQuik II Auto Load reduces time to return components to stock. Faster inventory turn over reduces cost and eliminates line down events.
The system's advanced detection algorithms automatically recognize components without the need for cumbersome models, libraries, or cloud connection, making it quick and simple to use. Unique imaging technology provides the greatest count accuracy and reliability.
The XQuik's flexible MES interface is easily configured to communicate with any inventory control system. Automatic detection determines whether a single, or up to four small reels are loaded, and keeps track of reel location, eliminating the risk of operator error.
FEATURES
- One button operation
- Reel location and size automatically detected
- Automatic recognition of components
- Automatic inventory updates to your MES
- Scanning of (4) 7” reels simultaneously
- Scanning of 13” or 15” reels
- Industrial PC: Microsoft Windows 10
2X PRODUCTIVITY
Integrated conveyor system doubles productivity by allowing barcode scanning, loading, unloading, and label application while counting up to four reels in <30 seconds.
AI TECHNOLOGY
No programming or teaching required! AI technology automatically recognizes components and built-in sensors allow for automatic reel location.
RELIABLE RESULTS
Superior x-ray technology and ultra-low parallax distortion delivers the highest image contrast and resolution and, as a result, the highest accuracy <99.8% on counted components.
INDUSTRY 4.0 READY
Easily integrate with a robot for advanced automation. Open Interface allows data to be uploaded directly to your ERP, optimizing inventory and resource management.
SPECIFICATIONS:
Performance Data
- Cycle Time: <30 seconds
- Count Accuracy: >99.8%
- Minimum Component Size: 01005
- Maximum Reel Diameter: 15in (380 mm)
- Maximum Reel Height: 2.4 in (60 mm)
General Machine Specs
- System Dimensions: 71 x 31 x 104 in (1803 x 787 x 2644 mm)
- System Weight: 925 lb (420 kg)
- Electrical Connection: 100 – 240 VAC, 1500 W
