Dry Cabinet for Standard Trays, SMD Reels – 502 Series
- Category: MSD Storage Cabinets
- Manufacturer: XDRY
Dry Cabinet System That Fits Standard Trays And SMD Reels
- Set point from 1-50% RH ( +/-2%) maintained indefinitely
- Equipped with Internal sensor to control desiccant refreshing & recycling
- Energy Saving design
- Desiccant longevity exceeding 10 years
- Ergonomic Features
The deep cabinet features 2 large doors that close onto an easily removable and replaceable center bar. This design allows full access to the cabinet interior, providing convenient storage for large or odd-shaped items as well as standard trays or reels. This deep cabinet can be configured with 1 or 2 X-133 desiccant dryers, providing storage and desiccating solutions for both long-term inventory and production environments.
About the Dry Cabinet for Standard Trays, SMD Reels – 502 Series
The XD-502 is a compact high efficiency desiccant drying cabinet with 500L3 capacity that fits standard tray and SMD reels. This dry cabinet for standard trays and reels is also suitable for many different applications including electronics, laboratory, aerospace and other applications that require low controllable humidity storage. Our dry cabinets are designed to displace moisture from multiple substrates, materials & mediums, in turn rapidly returning the RH level automatically to the users desired set point on the LED control.

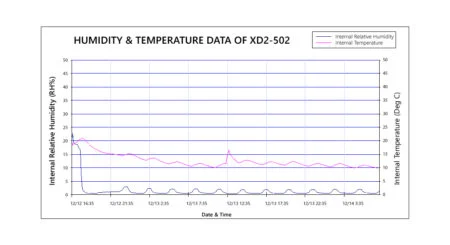

This dry cabinet storage system contains auto desiccation technology to maintain an infinite range of set points from 1% to up to 50 % RH helping to maintain the proper storage for trays and SMD reels. The internal sensor automatically controls the refreshing and recycling of the synthetic desiccant in the X133 drying unit. The synthetic regenerating desiccant has a lifespan of up to 10 years creating a maintenance-free system with the operating cost of just pennies a day. These deep dry cabinet systems fit standard trays and reels have a small footprint to maximize your storage space and they are very competitively priced!
- X133 dryer system unit is self generating, auto-desiccated and maintenance free
- Closed loop programmable LED touch pad, which maintains RH% levels from 2 to 50% in .1% increments
- RH setting lockout on LED display insures no unauthorized changes to RH% set point
- Anti-corrosive & ESD safe coating on all surfaces, compliance with IEC61340-5-5
- Stainless steel shelves adjustable on 3" intervals
- ESD wrist strap connection
- Secure lock and key mechanism
- Audible RH% Alarm alerts if RH% level is outside of set point
Specifications:
- XD1-502 – RH Range 2% – 50% RH
- XD2-502 – RH Range 1% – 50% RH
- RH Range 1% – 50% RH
- Available configured as AC110V, 50/60Hz OR AC220V, 50/60 Hz
- Electrical Consumption 30W Avg — 700W Max
- Capacity 500L
- 3 Stainless Steel Shelves Included

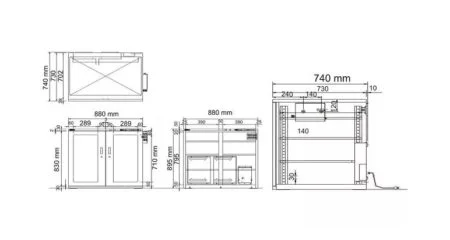

- External Dimensions 880 mm x 900 x 740
- Internal Dimensions 870 mm x 830 x 690
- XD1-502 Weight – 62Kg
- XD2-502 Weight – 67Kg
Options:
- Xtra-Heat
- RH/Cº data recorder
- HEPA filtration
- Alarm light tower
- Casters anchoring legs
- Additional dryer
- Sliding rail rack
- Custom engineering
- Nitrogen purge system
- Stainless steel construction
