Selective Conformal Coating Machine With Tilt And Rotate | SimpleCoat TR
- Category: Conformal Coating Equipment
- Manufacturer: GPD Global
Cost-effective Conformal Coating and Dispense Applications with Tilt and Rotate Function
About the Selective Conformal Coating Machine With Tilt And Rotate | SimpleCoat TR

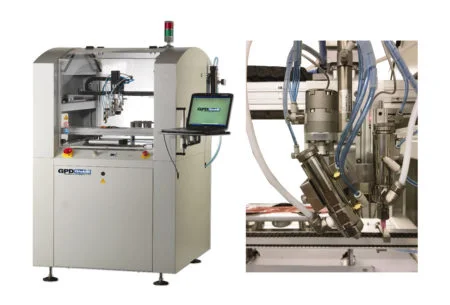

Some applications require coating on products with a complex geometry. For these types of products, a standard top-down coating may be insufficient. The tilt and rotate model - SimpleCoat TR - allows the spray valve to be tilted ±45° and rotated ±90° to reach four sides of a product.
TILT AND ROTATE
A Tilt and Rotate head is included in the base configuration of the SimpleCoat TR along with the robust 3-axis motion platform. Station 1 spray valve tilts ±45° and rotates ±90° giving you full access to all sides of your device.
RELIABLE XYZ MOTION SYSTEM
The drive system consists of a 3 axis robot driven by reliable stepper motors. With positioning repeatability of 50 µm, your coating results will be consistent from first-to-last product.
STANDARD FEATURES
- Reliable XYZ Motion System
- Full-featured Programming, including Teach from .JPG
- Inline Operation with SMEMA Communication
- Spray and Needle Valve
- Purge and Solvent Cups
- Stainless Steel Surfaces
- Bottom Side Fume Extraction with Exhaust Flow Sensor
- External Reservoirs for Fluid Feeding
- Internal Black Light for Coating Inspection
- Keyed Maintenance Mode
- Light Tower
- Light Tower
RELIABLE XYZ MOTION SYSTEM
The drive system consists of a 3 axis robot driven by reliable stepper motors. With positioning repeatability of 50 µm, your coating results will be consistent from first-to-last product.
SPECIFICATIONS
| Capacity | Dispense valve | Up to 2 valves |
| Spray valve | Tilt ±45•, Rotate ±90• | |
| Motion Control | XYZ Axis Drive | Stepper motors plus ball screw |
| XYZ Repeatability | 50 µm | |
| Speed | 350 mm/sec (13.78"/sec) | |
| Coating Area | XYZ Travel with 2 Valves | 394 mm x 394 mm x 50 mm (15.5" x 15.5" x 2.0") |
| XYZ Travel with Spray Valve only without tilt and rotate | 457 mm x 394 mm x 50 mm (18" x 15.5" x 2.0") | |
| Bottom Side Clearance | 100 mm (4") | |
| Conveyor | Conveyor Type | Pin Chain |
| Conveyor Width (minimum | 50 mm (2") | |
| Conveyor Width (maximum) | 394 mm (15.5") | |
| Edge Clearance | 6 mm (0.25") | |
| Transport Height | 940 mm - 965 mm (37" - 38") | |
| Communication | SMEMA | |
| Facility Requirements | Air Supply | 6 bar (87 psi) dry, clean air Included: Quick disconnect for 8 mm hose |
| Exhaust Port | minimum 250 CFM, 127 mm (5") diameter | |
| Power | 100-240 VAC, 50/60 Hz, SIngle Phase, 10 Amp | |
| Operating Control | Minimum Requirements | Customer-supplied laptop with Ethernet connection and Windows 7 or newer |
| Footprint (W x D x H) | 1000 mm x 1400 mm x 1550 mm (39.37" x 55.12" x 61.02") | |
| Weight (approximate) | 275 kg (605 lbs) | |
| Certification | CE | |
