Large MSD Dry Cabinet – 1104 Series
- Category: MSD Storage Cabinets
- Manufacturer: XDRY
A Very Large MSD Dry Cabinet That Is IPC/JEDEC Compliant.
- Set point from 1-50% RH ( +/-2%) maintained indefinitely
- Equipped with Internal sensors to control desiccant refreshing & recycling
- Energy Saving design
- Desiccant longevity exceeding 10 years
- Ergonomic Features
XDry’s largest standard cabinet is configured with 4 doors that close in on themselves, allowing the user to access the full width of the cabinet without any obstruction. The 1100 series can be equipped with 1, 2 or 3 dryers to suit any desiccating or dry storage specification, easily satisfying IPC/JEDEC 033 and 020 MSD handling requirements. This model is shipped standard with industrial castors, allowing for easy relocation wherever dry storage is required.
About the Large MSD Dry Cabinet – 1104 Series
The XD-1104 is a large MSD dry cabinet storage system. This MSD dry cabinet is a compact high efficiency desiccant drying cabinet with 1100L³ capacity. This large dry cabinet system is suitable for electronics, laboratory, aerospace and many other applications that require low humidity. This MSD dry cabinet storage system is designed to displace moisture from multiple substrates, materials and mediums, in turn rapidly returning the RH level automatically to the users desired set point on the LED control.
This MSD dry cabinet contains auto desiccation technology to maintain an infinite range of set points from 1% to up to 50 % RH. The internal sensor automatically controls the refreshing and recycling of the synthetic desiccant in the X133 drying unit.
The synthetic regenerating desiccant has a lifespan of up to 10 years creating a maintenance-free system with the operating cost of just pennies a day.
- X133 dryer system unit is self generating, auto-desiccated and maintenance free
- Closed loop programmable LED touch pad, which maintains RH% levels from 1 to 50% in .1% increments
- RH setting lockout on LED display insures no unauthorized changes to RH% set point
- Anti-corrosive & ESD safe coating on all surfaces, compliance with IEC61340-5-5
- Stainless steel shelves adjustable on 3″ intervals
- ESD wrist strap connection
- Secure lock and key mechanism
- Audible RH% Alarm alerts if RH% level is outside of set point
Specifications:
- XD1 – RH Range 10% – 50% RH
- XD2 – RH Range 2% – 50% RH
- XD3 – RH Range 1% – 50% RH
- Available configured as AC110V, 50/60Hz OR AC220V, 50/60 Hz
- Electrical Consumption 63W avg — 700W Max
- Capacity 1100L
- 5 Stainless Steel Shelves Included

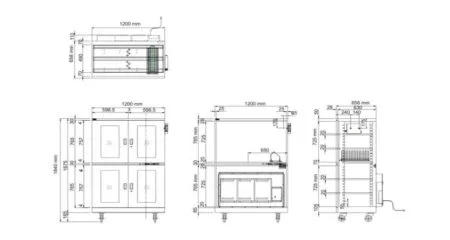

- External Dimensions 1200 mm x 1840 x 770
- Internal Dimensions 1190 mm x 1560 x 720
- XD1-1106 Weight – 155Kg
- XD2-1106 Weight – 160Kg
- XD3-1106 Weight – 165Kg
- IPC/JEDEC compliant
Options:
- Xtra-Heat
- RH/Cº data recorder
- HEPA filtration
- Alarm light tower
- Casters anchoring legs
- Additional dryer
- Sliding rail rack
- Custom engineering
- Nitrogen purge system
- Stainless steel construction
