High-Speed Selective Stamp Soldering Machine – MAS-151
- Category: Mass Production Selective Soldering Machines
- Manufacturer: SASinno
The Latest Generation Selective Stamping Soldering Machine With The Highest Output, Roi And Quality Control
About the High-Speed Selective Stamp Soldering Machine – MAS-151
Highest output, Highest ROI, Highest quantity control capability
- A singe drop jet fluxer nozzle for selective fluxing Provides good fluxing results while reducing flux usage
- 5 zones of top & bottom preheating. provide enough heating capacity for boards prior to soldering
- Unique stamping solder pot N2 system design minimizes the wave/stamping nozzle exposure time
- Unique conveyor system minimizes transportation time when board travel from one section to another
- Windows 10 system English version
Specifications
| Item | MAS-151 |
| General | |
|---|---|
| Max board dimension | Max W500xL500mm |
| Soldering area | Max W450xL450mm |
| Machine dimension | 5200(L)*1850(W)*1650(H) |
| Machine weight | 2500KG |
| Power supply | 3PH 380V 50HZ |
| Air supply | 3-5 bars |
| N2 consumption | 15--20m3/H |
| N2 purity | >99.99% |
| Exhausting volume | 1500M3/h |
| Controlling | Computer |
| UPS power supply | Standard included |
| Conveyor system | |
| Max board load | 15kg/pc |
| Max machine toal load | 15kg/pc x 7＝105kg |
| Fluxing section covneyor | Pin chain conveyor |
| Preheating & soldering section conveyor | Idle rollers, multi finger to push all board synchroniz |
| Fluxing section | |
| Flux nozzle | Drop jet fluxer nozzle made in Germany |
| Fluxer quantity | 1pc |
| Flux tank capacity | 5Liters |
| Flux tank quantity | 1pc |
| Cleaner tank capacity | 1Liter |
| Cleaner tank quantity | 1pc |
| Fluxer nozzle cleaning function | one button auto cleaning function |
| Motion axis | X, Y Servo motor |
| Motion axis accurancy | + / - 0.1mm |
| Preheating section | |
| Preheating method | Top side with hot air convection, bottom side with IR |
| Preheating zone quantity | Top 5, bottom 5, individually |
| Temperature range | 25－－200c degree |
| Temperature control | PID |
| Convection motor monitoring | Optional |
| Heater failure monitoring | Optional |
| PCB surface temperature monitoring | Optional |

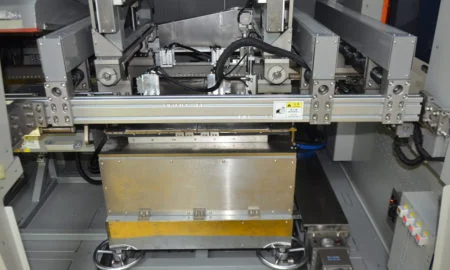

| Multi nozzle stamping soldering section | |
| Solder pump type | Mechanical |
| Solder pot quantity | 1 |
| Solder pot capacity | 550kgs |
| Solder temperature control | PID |
| Solder max temperature | Max 320degree |
| Solder melting time | 2 hours |

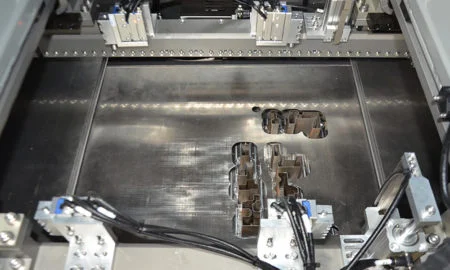

| Stamp nozzle | Customzie |
| N2 shield | Auto close/open, Auto up/down, max N2 protection result |
| N2 heating temperature | 25－－250c degree |
| N2 temperature control | PID |
| Motion (board or pallet) | Z1，Z2 two axis individually |
| Motion control | Servo |
| Motion accurancy | + / - 0.1mm |
