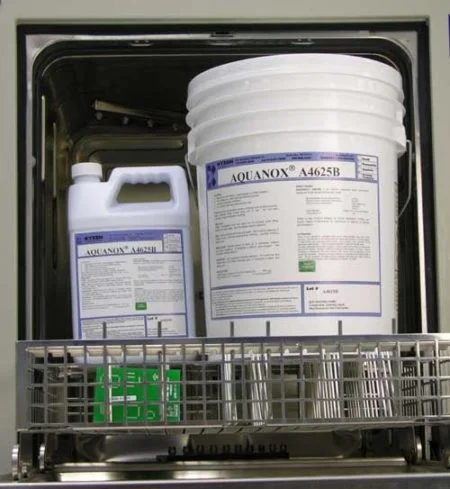

Aqueous Batch Cleaning Solution – AQUANOX A4625B
- Category: Stencil Cleaning Agents & Chemistries
- Manufacturer: Kyzen
Developed specifically to remove all types of solder pastes and flux residues from printed circuit board assemblies, including the latest lead-free solder paste formulas. Originally designed to address the challenges of batch cleaning systems, A4625B is also very effective when used in in-line washers.
- Ideally suited for batch spray-in-air cabinet and planar cleaning machines
- Strong match to low residue no-clean flux types
- Best in Class for lead-free no-clean flux residues
About the Aqueous Batch Cleaning Solution – AQUANOX A4625B
AQUANOX A4625B is a low VOC, environmentally friendly product that has excellent material compatibility due to KYZEN’s revolutionary inhibition technology. A4625B provides brilliant mirrored solder finishes even after multiple cleaning cycles. AQUANOX A4625B is utilized at low concentrations and temperature, which results in low cost of ownership.
Product Data
- Application: Defluxing Mixed Technology PCBs
- Process: Spray
- Concentration: Up to 25%
- Temperature: Up to 150°F / 65°C
- Rinse: DI Rinse Heat Optional
- Dry: Hot Air
- pH (10g/L): 9.5
- Flash Point: 212°F / 100°C
- Boiling Point: 338°F / 170°C
- Water Soluble: Partial
- VOC, @ 10% 91.6 g/L
Soils:
- Lead-Free Flux
- Reaction Products
- Organic Compounds
- RMA Flux
- Ionic Contaminants
- Solder Balls
- No-Clean Flux
- Finger Print Oils
- Rheological Additives to Solder Pastes
- Synthetic Flux
- Plasticizers from Flux
- Water Soluble Flux
Compatibility:
AQUANOX® A4625B has proven compatible with all materials commonly used in electronic assembly manufacturing and cleaning processes.
Environmental Regulations:
AQUANOX® A4625B is a non-hazardous, biodegradable aqueous solution. It contains no CFC's or HAP's.
Availability:
Available in 1, 5, and 55 gallon (5, 25, 200 liters) containers.
Storage and Handling:
- Packaged in Polyethylene Containers
- Store at 5-30°C/41-86°F in Original Container
- Standard Chemical Handling Practices Required
- Shelf Life of 5 Years, in Sealed Containers of 5 gallons / 25 liters or More
