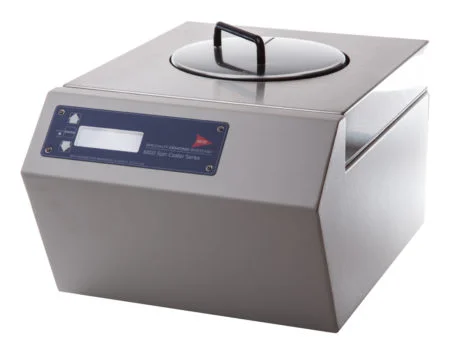

6800 Spin Coater

Available in non-programmable and programmable models, the SCS 6800 features proprietary circuitry and user-friendly operation that allow for the uniform application of photoresists, polyimides, metal-organics, dopants, silica films and most organic and aqueous solutions to planar substrates.

Description

About the 6800 Spin Coater

Features

  • Precise control of spin speed and acceleration/deceleration rates
  • Easy-to-use keypad and LCD display on the front panel
  • Clear cover features a dispensing slot and safety interlock
  • Non-programmable model (8-inch) can store and execute a single recipe with up to four steps
  • Programmable models (8- and 12-inch) can store and execute up to three recipes with eight steps each

Optional Features

  • Nonprogrammable
    • External vacuum pump
  • Programmable
    • External vacuum pump
    • Foot pedal
    • SCS Multi-Dispense automated dispense system

Specifications

Bowl Size - Nonprogrammable8 in / 20.3 cm
Bowl Size - Programmable8 in. and 12 in. / 20.3 and 30.5
Rotational Speed0 to 9,999 RPM in 1 RPM increments
Acceleration/Deceleration0.1 to 30 seconds in 0.1 second increments
Dwell Time0 to 999 seconds in 1 second increments
Dispense Time10 to 30 seconds in 0.1 second increments (programmable model only)
Power110/240 VAC, 50/60Hz, 1Ø
Dimensions (W x D x H)13.25 x 18 x 10.8 in / 33.7 x 45.7 x 27.4 cm
